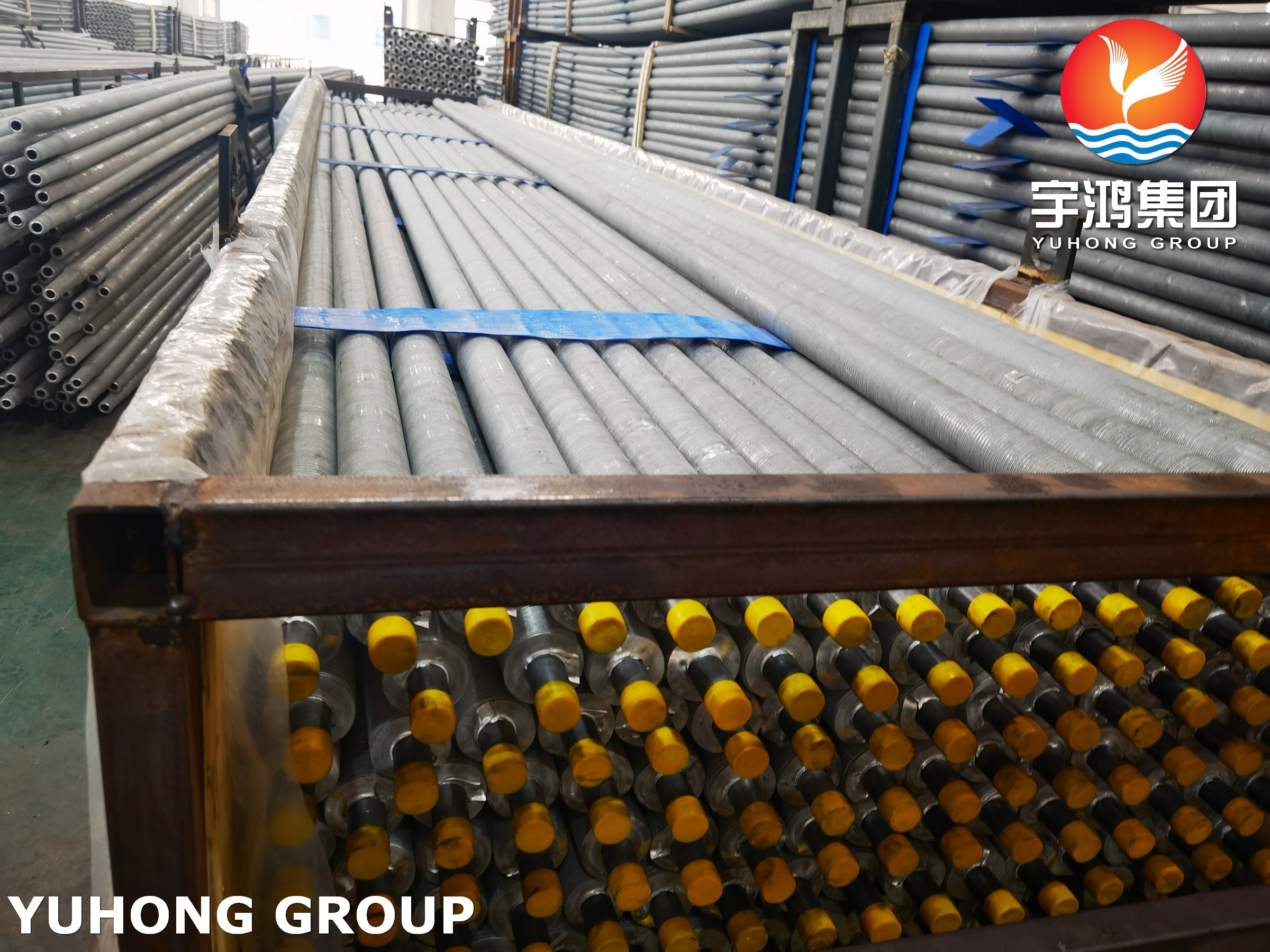

    ASTM A179 Carbon Steel Extruded Fin Tube For Boilers and Economizers

    Ask Lasest Price
    Brand Name : YUHONG
    Model Number : ASTM A179 Extruded Fin Tube
    Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 tons per month
    Delivery Time : Depends on quantity
    • Product Details
    • Company Profile

    ASTM A179 Carbon Steel Extruded Fin Tube For Boilers and Economizers

    1. Material Specification
    Base Tube Standard: ASTM A179 specifies seamless cold-drawn low-carbon steel tubes, designed for heat exchangers and condensers in medium-low temperature and high-pressure environments.

    Chemical Composition (precise ranges and functions):

    GradeCMPS
    A1790.06–0.180.27–0.63Max0.035Max0.035

    2. Mechanical Properties:

    • Tensile Strength: ≥325 MPa
    • Ensures resistance to fracture under high pressure.
    • Yield Strength: ≥180 MPa
    • Reflects load-bearing capacity before plastic deformation.
    • Elongation: ≥35% (50mm gauge length)
    • High elongation indicates ductility, suitable for cold-working processes (e.g., fin extrusion).

    3. Manufacturing Process:

    • Cold Drawing: Refines grain structure, improves surface finish, and ensures dimensional accuracy.
    • Heat Treatment: Annealing may be applied to relieve stress, but ASTM A179 tubes are typically delivered in the "as-drawn" condition.

    4. Extruded Fin Manufacturing Process

    • Tube Pre-Treatment: Surface cleaning (pickling or sandblasting) to remove oxides and contaminants, ensuring fin formation quality.
    • Die Design: Die Material: Tungsten carbide (high wear resistance). Die Structure: Spiral groove design to control fin height (H), pitch, and thickness.
    • Extrusion: Mechanical Extrusion: The base tube is forced through rotating dies, integrally forming helical fins without welding or bonding. Cold Work Hardening: Fin regions undergo lattice distortion, increasing hardness (HV +20–30%) and fatigue resistance.
    • Post-Processing: Dimensional calibration (fin height/pitch tolerance: ±0.1mm). Surface treatments: Optional galvanizing, aluminizing, or anti-corrosion coatings (e.g., epoxy).

    5. Process Advantages

    • Seamless Integration: Fins and base tube are monolithic, eliminating interfacial corrosion risks.
    • High Thermal Conductivity: No contact thermal resistance (superior to welded or wrapped fins).
    • Adjustable Fin Density: 5–11 FPI (fins per inch) balances heat transfer and pressure drop.

    6. Applications

    • Power Generation: Boiler economizers, air preheaters (APH), condensers.
    • Petrochemical & Refining: Hydrocracker feed/effluent exchangers, crude oil preheaters.
    • HVAC & Refrigeration: Industrial chiller condensers, heat pump evaporators/condensers.
    • Renewable Energy: Biomass boiler flue gas heat recovery, geothermal heat exchangers.
