ASTM A213 TP316L, 1.4404, S31603 Stainless Steel Seamless Heat Exchanger Tube

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	TP316L / 1.4404
Certification :	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Price :	NEGOTIABLE
Payment Terms :	L/C, T/T
Delivery Time :	5-60 Days
Supply Ability :	According to Clients' Requirement

Add to Cart

Product Details
Company Profile

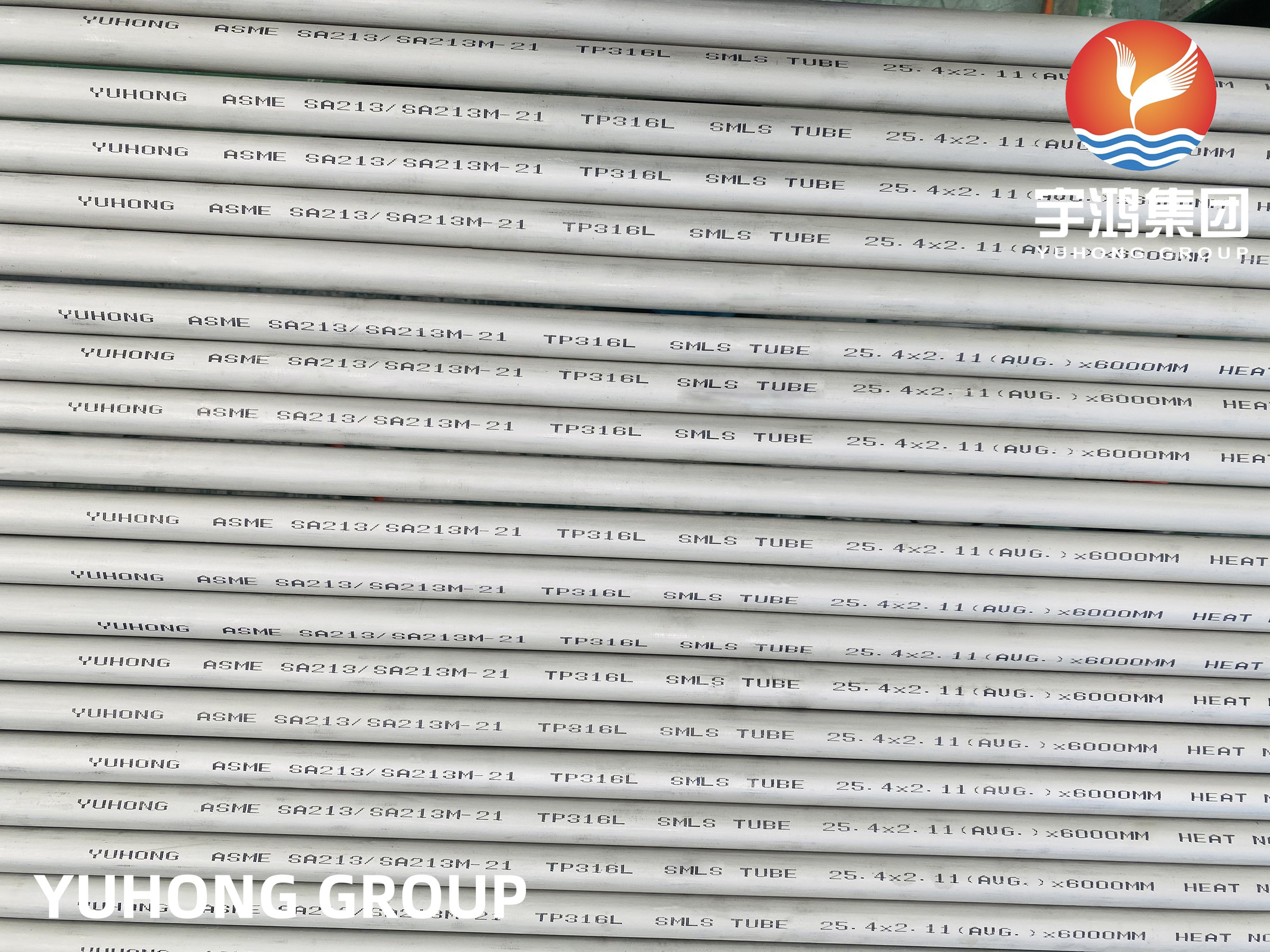

ASTM A213 TP316L, 1.4404, S31603 Stainless Steel Seamless Heat Exchanger Tube

ASTM A213 TP316L, 1.4404, S31603 Stainless Steel Seamless Heat Exchanger Tube

ASTM A213 TP316L(1.4404, UNS S31603) is a specification of heat exchanger tube produced from the 316L austenitic stainless steel. ASTM A 213 standard covers tube for heat exchangers in ferritic and austenitic steels. ASTM A213 TP316L is a lower carbon version of the TP316 material steel. Therefore, ASTM A213 TP316L has more toughness but less strength compared to the TP316 grade SS pipes. ASTM A213 TP316L stainless steel seamless tube could be produced under electric resistance weld, electric fusion weld or by cold drawing.

Equivalent Grades:

GRADE	UNS NO	OLD BRITISH		EN/ EURONORM		SWEDISH SS	JAPANESE JIS
		BS	EN	NO	NAME
TP316L	S31603	316S11	-	1.4404	X2CrNiMo17-12-2	2348	SUS 316L

Specifications:

Specifications	ASTM A213 / ASME SA213
Grade	TP316L / 1.4404
Dimensions	ASTM, ASME and API
Tubes Size	1/8” TO 30”
Schedule	SCH10 - SCHXXS
Type	Seamless / ERW / Welded / Fabricated / LSAW Tubes
Form	Round
Length	Single Random, Double Random & Cut Length
End	Plain End, Beveled End, Treaded

Chemical Composition:

%	C	MN	SI	P	S	Cr	Mo	Ni	N
Min	-	-	-	-	-	16.0	2.00	10.0	-
Max	0.08	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10

Mechanical Properties:

TENSILE STRESS (MPA) MIN	YIELD STR 0.2% PROOF (MPA) MIN	ELONG (% IN 50MM) MIN	HARDNESS
			ROCKWELL B (HR B) MAX	BRINELL (HB) MAX
485	170	40	95	217

Applications:

Petroleum Industry

Chemical Industry

Paper and Pulp Industry

Fertilizer Industry

Fluid, Gas and Oil Industry

Boilers and Heat exchangers

Decoration purpose

Auto parts

Medical device

Food industry

Construction Equipment

Ornamental Equipment
