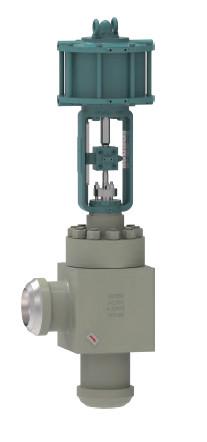

    DN 20 to DN100 Forged One Piece Stellited Seat Angle Ball Valve

    Ask Lasest Price
    Model Number : Angle Valve
    Certification : API ,CE,PED, ISO
    Price : could be discussed
    Payment Terms : L/C, T/T
    Supply Ability : could be discussed
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    DN 20 to DN100 Forged One Piece Stellited Seat Angle Ball Valve

    Features

    • Die-forged body.
    • Bonnet/body one-piece design.
    • Stellited seat.
    • Guided disk.
    • Dust-tight enclosure of actuator head.
    • Easy changeover to actuator.
    • Position indicator.
    • Small driving forces.
    • Low pressure loss.
    • Easy to maintain.
    • 1 or 3 pressure stage(s).
    Specification
    Size:
    DN 20 to DN 100
    NPS ¾ to 4
    Pressure:
    PN 100 to 400
    Rating class 150–2500
    Temperature:
    –28°C to 625°C
    –20°F to 1100°F
    Material:
    1.7380/ 1.4903/1.0460/1.5415
    SA182 F22 / SA182 F91 / SA 105
    Other materials on request
    Connection:
    Butt weld ends acc. to ASME B16.25
    Socket weld ends acc. to ASME B16.11
    Other connections on request
