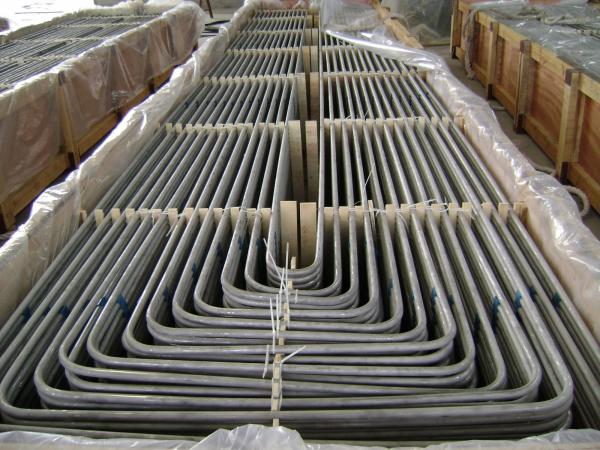

ASTM A213 TP304L Stainless Steel Seamless U Bend Heat Exchanger
Tube
U-Bend Tube are widely used in Heat Exchanger Systems. Heat-Exchanger
Equipment on the basis of
Seamless Stainless U-Tubes and Welded Stainless U bend Tube is
essential in strategically important and
critical felds---Nuclear And Petrochemical Machine Building.
YUHONG SPECIAL STEEL Start to Produce U Bending Tube Since 2006,Up
to now already supply more than
30000 tons Stainless Steel U Bend Tube to 35 countries.
The U-Bend Tube Comply With The Following Standards:
1. ASTM A688/ASME SA688
2. ASTM A803/ASME SA803
3. ASTM A556/ASME SA556
Steel Grade:
| Ferrite | Austenite | Duplex | Super Duplex | Ni-Alloys | Titanium |
TP410 TP405 S44400 S44660 TP430 | TP304/304L TP316/316L TP316Ti TP317/317L TP321 TP347 | S31803 S32205 S32304 | S32750 S32760 | N06600 N08020 N00880 N08825 N08904 | Gr.2 |
Technical Requirements:
Straight Tubes Standard Specification For Bending:
ASME SA 213; ASME SB 163; ASME A789, ASME SA268, ASME SA269, etc.
Marking: Before Bending By Marking Machine All Over The Tube Length (Bent
Section After Heat Treatment Without Marking)
Note: Marking is also possible After Bending On The Straight Parts Of
U-Bending Tube.
U-Bend Tubes:
- TEMA RCB 2.31 Standard Of The Tubular Exchanger Manufacturers
Association (9th Edition).
- ASTM A688/ASME SA688 Standard Specification For Welded Tubes Of
Austenitic Corrosion Resistant
Steel Grade Designed For Feed Water Boilers.
- ASTM B163/ASME SA163 Standard Techinical Requirements For Tubes
Of Nickel And Nickel Alloy For
Condensers And Heat Exchangers.
Customer Specifications:
Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm
When Ordering Tubes With Radius less or equal to 1.5*OD, It Is
Necessary To Agree Precision Of Geometrics.
Straight Tubes Maximum Length:(Before Bending): 35000 mm.
Leg Length: Min 1 Meter, Max. 16500 mm (For Max R=1500mm)
Note: Other Size Are Available Upon Agreement.
Heat Treatment: Stress Relieved After U-Bending (Bending Area Plus 300MM For Each
Leg).
Hydrostatic Test After U Bending: Maximum Test Pressure 600 Bar, Soaking 10 Sec. With
Dematerialized Water. Compressed Air Cleaning After Hydro-Test.
Packaging: In Strong Transport-Worthy Pre-fumigated wooden boxes of
corresponding dimensions for
each tube Length, Radius, Diameter, According To PO requirements as
well as wrapped In polyethylene
films With soft plastic caps on both end of Tube.
Quality Tests:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450
and A-530 norms, which ensures trouble-free expansion, welding &
use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital
Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms
for checking tube leakage, and biggest pressure we can support
20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is
subjected to thorough visual inspection by trained staff for
detecting surface flaws & other imperfections |
Supplementary Testing:
- Eddy Current Testing
- O.P Testing
- Radiography Testing
| - Corrosion Testing
- Micro Testing
- Macro Testing
| - IGC Testing
- Ultrasonic testing
- Liquid Penetrate testing
|
