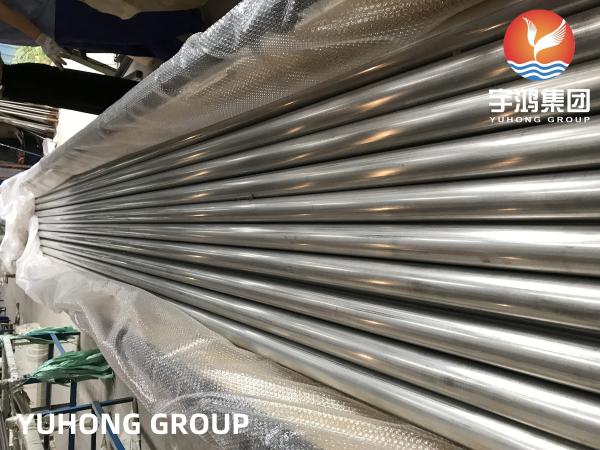

ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed

    Buy cheap ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed from wholesalers

    Buy cheap ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed from wholesalers
    • Buy cheap ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed from wholesalers
    • Buy cheap ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed from wholesalers
    • Buy cheap ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed from wholesalers

    ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed

    Ask Lasest Price
    Brand Name : Yuhong
    Model Number : ASTM A249 TP321
    Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed


    ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed


    ASTM A249 TP321,Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tube


    We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.


    ASME SA249 TP321 is one of those stainless steel alloys which are designed to be used for elevated temperature applications. Specifically speaking this grade of ASTM specified SA 249 TP 321 are usually used in piping systems involved in the superheater, boiler, heat exchanger, or condensers. The Stainless Steel 321 Erw is a titanium alloyed grade. Titanium is usually added in carbon steel grades that have a higher content of carbon such as the ASME SA 249 TP321, for carbide stabilization.


    Specification:

    StandardsWelded Tube
    ASTMA 249
    ASMESA 249
    Dimensional Range:
    Product NameASTM A249 TP 321 Stainless Steel Welded Tubes
    Range6NB to 1200NB - SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS.
    In Form ofRound, Square, Rectangle, Oval, Coil, Flexible Pipe, Shaft, ‘U’ Shape, Hydraulic pipe, Honed Tubes
    In Length ofStandard & Cut length
    Special PipesFabricated Pipe (with radiography)
    Value Added ServiceDraw & Expansion as per required Size & Length Polish (Electro & Commercial) Heat Treatment Bending Annealed & Pickled Sand Blasting Machining Etc.
    Material Grade (AISI /TP)AISI TP 304, TP 304H, TP 304L, TP 304LN, TP 316, TP 316H, TP 316L, TP 316LN, TP TP 316Ti, TP 309, TP 310, TP 317L, TP 321, TP 347, TP 409, TP 410, TP 420, TP 430, TP 446, TP 202 Etc.
    0cr18N9, 00Cr19Ni10, 0Cr25Ni20, UNS31803, S31500, S32750, 2205, 904L Nickel Alloy 600, 625, 800, 825, 718
    TEST CERTIFICATESMTC, IBR & Third Party Inspection Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection
    SpecializeFabricated Pipe Square & Rectangle & Other Odd Size
    Specification:ASTM A 269/A 213/ASME SA 213 / EN 10216-5/EN 10305 / NACE MR0175/PED 97/23 EC
    Maximum service temperature:650°C / 1205°F

    Chemical details:

    Technical composition (%)FeCrNiMnSiPCSTi
    321minBal.179------
    max-201320.750.030.080.040.04

    Mechanical properties:

    Tensile Strength, MpaYield Strength, MpaElongation, %Hardness, HRB
    515 min205 min35 min90 max

    Application:

    • Common industrial services (Petroleum, chemical, paper, fertilizer, fabric, aviation and nuclear)
    • Fluid, gas and oil industry
    • Heat transmission and pressure service
    • Construction and ornamental
    • Boilers and Heat exchangers
    • Decoration purpose, boiler, auto parts, medical device, food industry, building materials)
    • ASTM A249 TP321 Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed
