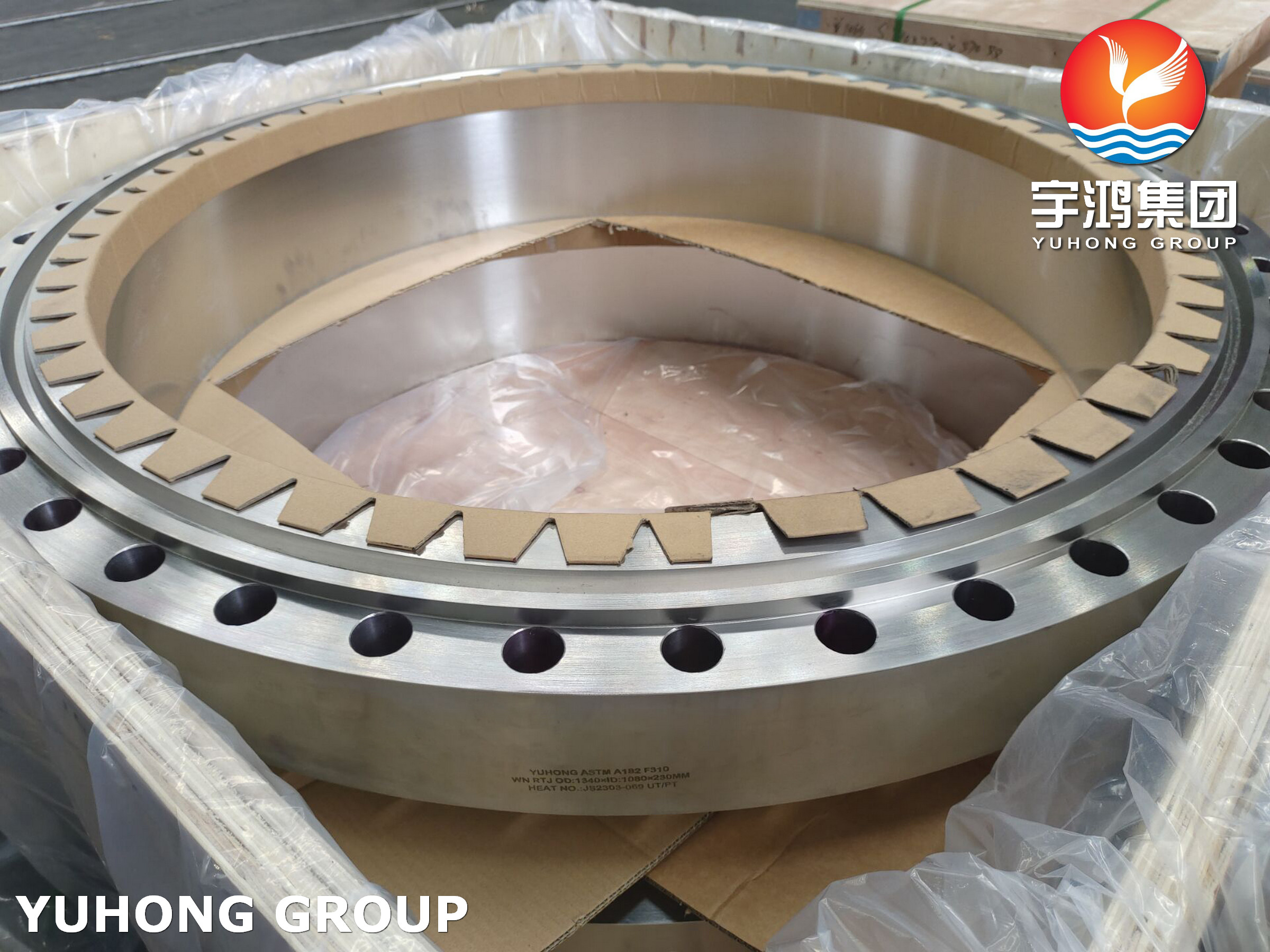

Stainless Steel Flanges ASTM A182 F310, UNS S31000 Weld Neck RTJ Flange B16.5

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	F310, UNS S31000
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	According to Clients' Requirement
Delivery Time :	5 - 90 Work Days
Certification :	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Add to Cart

Product Details
Company Profile

Stainless Steel Flanges ASTM A182 F310, UNS S31000 Weld Neck RTJ Flange B16.5

Stainless Steel Flanges ASTM A182 F310, UNS S31000 Weld Neck RTJ Flange B16.5

Stainless Steel 310 is the combination of nickel and chromium giving them resistant to general corrosion. Due to the content of nickel in the alloy, These flanges have good strength at the most extreme weather conditions and also have excellent resistance to the creep deformation. ASTM A182 F310 Stainless Steel Flange combines excellent high temperature properties with good ductility and weldability. It is designed for high temperature service. ASTM A182 F310 Flanges is widely used for applications in the industrial, architectural, and transportation fields.

Equivalent Grades:

STANDARD	UNS	JIS	GOST	WERKSTOFF NR.	BS	EN
SS310	S31000	SUS 310	20Ch25N20S2	1.4841	310S24	X15CrNi25-20

Specifications:

Specifications	ASTM A182, ASME SA182
Flange size range	1/2” to 24”
Flanges Dimensions	ANSI/ ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Flanges Standard	ANSI, AWWA, ASME, BS 10 Table D Flanges, Table E Flanges, BS, DIN, EN, GOST.
Class	150#, 300#, 600#, 900#, 1500#, 2500#
Flange Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Flat Face (FF), Small Male-Female (SMF), Lap-Joint Face (LJF), Small Tongue, Large Tongue & Groove
Specialized manufacturer of	Weld Neck Ring Flanges (WNRF), Slip-On Ring Flanges (SORF), Blind Ring Flanges (BLRF), Socket Weld Ring Flanges (SWRF), Lap Joint Ring Flanges (LJRF), Ring Type Joint Flanges (RTJF), Large Diameter Flanges, Orifice Flanges

Chemical Composition:

Ni	19– 21
Cr	24 – 26
C	0.015 max
Mn	2 max
P	0.02 max
S	0.015 max
Si	0.15 max
Mo	0.1 max
Fe	54.7 min

Mechanical Properties:

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7900 kg/m3	1402 °C (2555 °F)	75000Psi, 515Mpa	30000Psi, 205Mpa	40 %

Applications:

Chemical Industries

Petrochemical Industries

Gas Processing Equipments

Power Generation

Sugar Industries

Food Processing Equipments

Waterworks Systems
