B16.11 Forged Pipe Fitting ASTM A182 F53 Super Duplex 2507 / S32750 Thread Elbow

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	A182 F53 Super Duplex Elbow
Certification :	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Payment Terms :	L/C, T/T
Delivery Time :	7days

Add to Cart

Product Details
Company Profile

B16.11 Forged Pipe Fitting ASTM A182 F53 Super Duplex 2507 / S32750 Thread Elbow

B16.11 Forged ASTM A182 F53 Super Duplex Steel 2507 / S32750 / 1.4410 / F53 Thread Elbow

ASME/ANSI B16.11 covers a wide range of forged fittings, including elbows, tees, crosses, couplings, unions, caps, plugs, bushings, and inserts. These fittings are typically used in piping systems for applications such as oil and gas, refineries, chemical plants, power plants, and other industrial processes. F53 is a super duplex stainless steel grade with excellent corrosion resistance and mechanical properties. Thread Elbow: t has threaded ends to facilitate connection with other threaded components.

ASTM A182 F53 Pipe Fitting Specification

Grade	Duplex Steel 2507 / S32750 \| WNR. 1.4410
Standard	ASTM A182 & ASME SA182
Dimensions	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8” NB to 4” NB
Grade	S31803 / S32205 / A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Class	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Form	S/W & SCRD
Type	Elbow, Tee, Union , Cross, CAP, Swage Nipples Coupling, Plug, Bush, Sokolet, Weldoket, Thredolet, Elbolet, Nipolet, Lateral Tee.

Chemical Composition of A182 F53 Super Duplex Pipe Fittings

UNS	C %	Cr %	Ni %	Mo %	N %	Mn %	Cu %	W	S	Si
S32750	< 0.03	24.0-26.0	6.0-8.0	3.0-5.0	0.24-0.32	< 1.20	< 0.5	-	-	-
2507	< 0.03	24.0-26.0	6.0-8.0	3.0-5.0	0.24-0.32	< 1.20	< 0.5	-	-	-
F53	< 0.03	24.0-26.0	6.0-8.0	3.0-5.0	0.24-0.32	< 1.20	< 0.5	-	-	-

Mechanical Propertities of A182 F53 Super Duplex Pipe Fittings

Grade	YS (MPa)	UTS (MPa)	% Elongation	Hardness(BHN)
UNS S32750	550 min.	795 min.	15 min.	310 max.
2507	550 min.	795 min.	15 min.	310 max.
F53	550 min.	795 min.	15 min.	310 max.

Forged Steel Elbow

Sr. No.	Material	Size	Sch. & Class	Specification	Item
1.	Forged Stainless Steel	15 NB To 100 NB	3000, 6000 & 9000 LBS	A-182 S/W & SCRD ANSI B16.11	Elbow - 90^o & 45^o Tee - Equal & Reducing Union Cross Coupling - Full & Half Socket Reducing CAP Plug-Hex & Square Nipples (Hex/Reducing) Sokolet & Weldolet Bush
2.	Forged Alloy Steel	15 NB To 100 NB	3000, 6000 & 9000 LBS	A-182 S/W & SCRD ANSI B16.11
3.	Forged Carbon Steel	15 NB To 100 NB	3000, 6000 & 9000 LBS	A-105 S/W & SCRD ANSI B16.11

Stainless Steel in Grade	ASTM A 182	304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 410, 420, 440C Etc
Alloy Steel in Grade	ASTM A 182	F5, F9, F11, F12, F21, F22 & F91.
Othe rGrade Available		A-350 LF2
Other Forms		Compression Fitting / Instrumentation / Hydraulic Fitting & Also As Per Drawing
Other Material like Non Ferrous Metals & Nickel Base Alloys		Fittings are also available in Copper (Dow), Brass, Aluminium, Cupro Nickel (90/10, 70/30), Hastelloy (C-276), Nickel (200, 201, 205), Monel (K400, K500), Inconel (600, 800), Alloy 20, Duplex, Phosphorus Bronze (90/10, PB2) Etc. as per ASTM, ASME, BS, IS & DIN Standard
Test Certificate		Manufacturer Test Certificate / Under Third Party Inspection . with Excise Gate Pass to avail Modvat benefit.

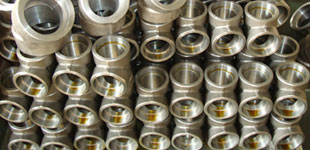

Product Pictures and Drawings



90 Degree Elbow (SW)	45 Degree Elbow (SW)	Tee (SW)	Lateral (SW)

Cross (SW)		Socket Weld Fittings

Socket Weld Dimensional Data

1/8" to 4" class 3000 socket weld, 1/8" to 4" class 6000 socket weld, 1/2" to 2 " class 9000 socket weld

Class 3000

1/8

1/4

3/8

1/2

3/4

1 1/4

1 1/2

2 1/2

7/8

31/32

1 1/8

1 5/16

1 1/2

1 3/4

2 3/8

3 3/8

4 3/16

29/32

1 1/16

1 5/16

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/16

4 5/16

5 3/4

0.420

0.555

0.690

0.855

1.065

1.330

1.675

1.915

2.406

2.906

3.535

4.545

3/8

1/2

5/8

3/4

7/16

17/32

5/8

3/4

7/8

1 1/16

1 1/4

1 1/2

1 5/8

2 1/4

2 5/8

Class 6000

1/8

1/4

3/8

1/2

3/4

1 1/4

1 1/2

2 1/2

1 5/16

1 1/2

1 3/4

2 3/8

2 1/2

3 1/4

3 3/4

4 1/2

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/32

4 3/4

0.855

1.065

1.330

1.675

1.915

2.406

2.906

3.535

4.545

3/8

1/2

5/8

3/4

7/8

1 1/16

1 1/4

1 1/2

1 5/8

2 1/4

2 1/2

2 3/4

Class 9000		1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
	A	-	-	-	1 1/2	1 3/4	2	2 3/8	2 1/2	3	-	-	-
	B	-	-	-	1 27/32	2 7/32	2 1/2	3 1/32	3 11/32	3 11/16	-	-	-
	C	-	-	-	0.855	1.065	1.330	1.675	1.915	2.406	-	-	-
	D	-	-	-	3/8	1/2	1/2	1/2	1/2	5/8	-	-	-
	E	-	-	-	1	1 1/8	1 1/4	1 3/8	1 1/2	2 1/8	-	-	-

ASME/ANSI B16.5 - 1996 - Pipe Flanges and Flanged Fittings

The ASME B16.5 - 1996 Pipe Flanges and Flange Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances, marking, testing, and methods of designating openings for pipe flanges and flanged fittings.

The standard includes flanges with rating class designations 150, 300, 400, 600, 900, 1500, and 2500 in sizes NPS 1/2 through NPS 24, with requirements given in both metric and U.S units. The Standard is limited to flanges and flanged fittings made from cast or forged materials, and blind flanges and certain reducing flanges made from cast, forged, or plate materials. Also included in this Standard are requirements and recommendations regarding flange bolting, flange gaskets, and flange joints.

ASME/ANSI B16.9 - 2001 - Factory-Made Wrought Steel Buttwelding Fittings

This Standard covers overall dimensions, tolerances, ratings, testing, and markings for wrought factory-made buttwelding fittings in sizes NPS 1/2 through 48 (DN 15 through 1200).

ASME/ANSI B16.11 - 2001 - Forged Steel Fittings, Socket-Welding and Threaded

This Standard covers ratings, dimensions, tolerances, marking and material requirements for forged fittings, both socket-welding and threaded.

Applications

Oil and gas industry.
Petrochemical industries ( polymerization reactor cycle pumps and pipework)
Offshore platforms (heat exchangers, process and service water systems, fire-fighting systems, and injection and ballast water systems)
Chemical process industries (heat exchangers and vessels)
Desalination plants (high pressure RO-plant and seawater piping)
Fertilizers (Recirculation tanks, sedimentation tanks, phosphate reactor recirculation pumps)
Power industry FGD systems
