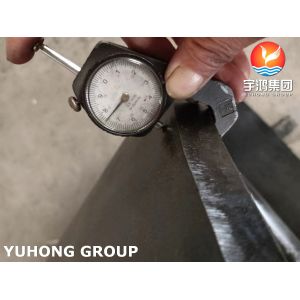

Carbon Steel Buttwelding Reducer A234 WPB-WX, Pipe Fittings For Piping Systems In Chemical Plants

Overview of A234 WPB-WX Reducer

A234 WPB-WX Reducer is a precision-engineered pipe fitting designed to connect two pipes of different diameters in a high-integrity, permanent piping system. Its specification ensures it meets rigorous standards for material quality, performance, and safety.

Here is a breakdown of its key aspects:

1. Function and Purpose

• Primary Function: To transition fluid flow between two pipes of different diameters while maintaining a smooth, welded connection.
• Key Benefits:
  • Reduces Pressure Drop: A smooth internal bore minimizes turbulence and energy loss compared to mechanical alternatives.
  • High Strength: The welded joint becomes as strong as the pipe itself.
  • Leak-proof: Eliminates potential leak points associated with threaded or flanged joints.
  • Durability: Suitable for long-term service under demanding conditions.

2. Material & Specification (ASTM A234 WPB)

• Standard: ASTM A234 is the overarching standard for "Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service."
• Grade: WPB is the most common grade for carbon steel fittings.
  • Chemistry: It has a controlled chemical composition (e.g., Carbon, Manganese, Silicon, Sulfur, Phosphorus) to ensure weldability and strength.
  • Mechanical Properties: It must meet minimum requirements for tensile strength and yield strength.
  • Temperature Range: Typically used for service temperatures between -20°F (-29°C) and 850°F (454°C). Usage outside this range requires careful evaluation.

3. The "WX" Supplementary Requirement

This is a critical differentiator. While "WPB" defines the base material, "WX" specifies an enhanced level of quality control.

• Interpretation: "WX" is not a universal ASTM code; its meaning is defined by the manufacturer or the customer's purchase order.
• Most Common Meaning: It almost always signifies that the fittings have undergone Charpy V-Notch (CVN) Impact Testing.
  • Purpose: Impact testing measures the material's toughness and resistance to brittle fracture at specified temperatures.
  • Implication: WX fittings are qualified for use in low-temperature environments or applications where sudden shock loading is a concern (e.g., cryogenic service, offshore platforms, or regions with cold climates). The exact test temperature (e.g., -50°F / -46°C) would be specified in the purchase documents.

4. Manufacturing and Design

• Type: Buttwelding (BW). The ends are bevelled to match the pipe preparation for a full-penetration weld.
• Styles:
  • Concentric Reducer: Symmetrical, with a common centerline. Used in vertical pipes or where fluid stratification is not an issue.
  • Eccentric Reducer: Asymmetrical, with one flat side. Used in horizontal pipelines to avoid trapping air (if flat on top) or to allow complete drainage (if flat on bottom).
• Dimensions: Governed by standards like ASME B16.9, which specifies the precise outside diameters, wall thicknesses, and lengths for each size combination.

Chemical Composition (%) of ASTM A234 WPB

Mechanical properties of ASTM A234 WPB

Application of A234 WPB-WX Reducer

• Power generation plants
• Oil and gas refineries
• Chemical processing plants
• High-pressure steam lines
• Any industrial piping system requiring a reliable, permanent welded connection between pipes of different sizes.
