ASTM A312 TP317L / UNS S31703 Stainless Steel Welded Pipe Pickled And Annealed

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	ASTM A312 TP317L Stainless Steel Welded Pipe
Certification :	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Payment Terms :	L/C,T/T
Delivery Time :	7 DAYS

Add to Cart

Product Details
Company Profile

ASTM A312 TP317L / UNS S31703 Stainless Steel Welded Pipe Pickled And Annealed

ASTM A312 TP317L Pickled and Annealed Pipe Stainless Steel Welded Pipe

TP317L offers excellent corrosion resistance in a wide range of corrosive environments, including acidic and chloride-rich conditions. This makes it suitable for applications where corrosion resistance is critical. TP317L is also a readily weldable material. Welding processes such as TIG (Tungsten Inert Gas) welding, MIG (Metal Inert Gas) welding, and submerged arc welding can be used to join TP317L pipes.

Stainless steel grade 317L is a low carbon version of grade 317 stainless steel. It has the same high strength and corrosion resistance as 317 steel but can produce stronger welds due to the low carbon content.

STANDARD	UNS	WERKSTOFF NR.
SS 317	S31700	1.4449
SS 317L	S31703	1.4438

Mechanical Properties ASTM A312 TP 317L Stainless Steel Pipes and Tubes

Density	8.0 g/cm3
Melting Point	1454 °C (2650 °F)
Tensile Strength	Psi – 75000, MPa – 515
Yield Strength (0.2%Offset)	Psi – 30000, MPa – 205
Elongation	35 %

Physical Properties (Room Temperature) ASTM A312 TP 317L Stainless Steel Pipes and Tubes

Specific Heat (0-100°C)	Thermal Conductivity	Thermal Expansion	Modulus Elasticity	Electrical Resistivity	Density
500	14.6	16.5	193	7.4	7.99
J.kg-1.°K-1	W.m -1.°K-1	mm/m/°C	GPa	μohm/cm	g/cm3

ASTM A312 TP317L SS Welded Pipe Specification

ASTM Specification	ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Standard	ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB
DIN 1.4438 SS 317L Pipe Size	4 to 219mm W. T.: 0.5 to 20mm
astm a312 tp317L EFW Pipe size	5.0 - 1219.2 mm
SS 317L Welded Pipe Size	5.0 - 1219.2 mm
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
317L Stainless Steel Pipe Length	Single Random, Double Random, Cut length
stainless steel astm a312 tp317L Pipe Schedule	SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form	317L Stainless Steel Pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc.
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc
317L Stainless Steel Pipe End	Plain End, Beveled End, Treaded Pipe, Screwed ends
Type of 317L SS Pipe	Seamless / ERW/ EFW / Welded / Fabricated
Application of 317L Stainless Steel Pipe	Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry

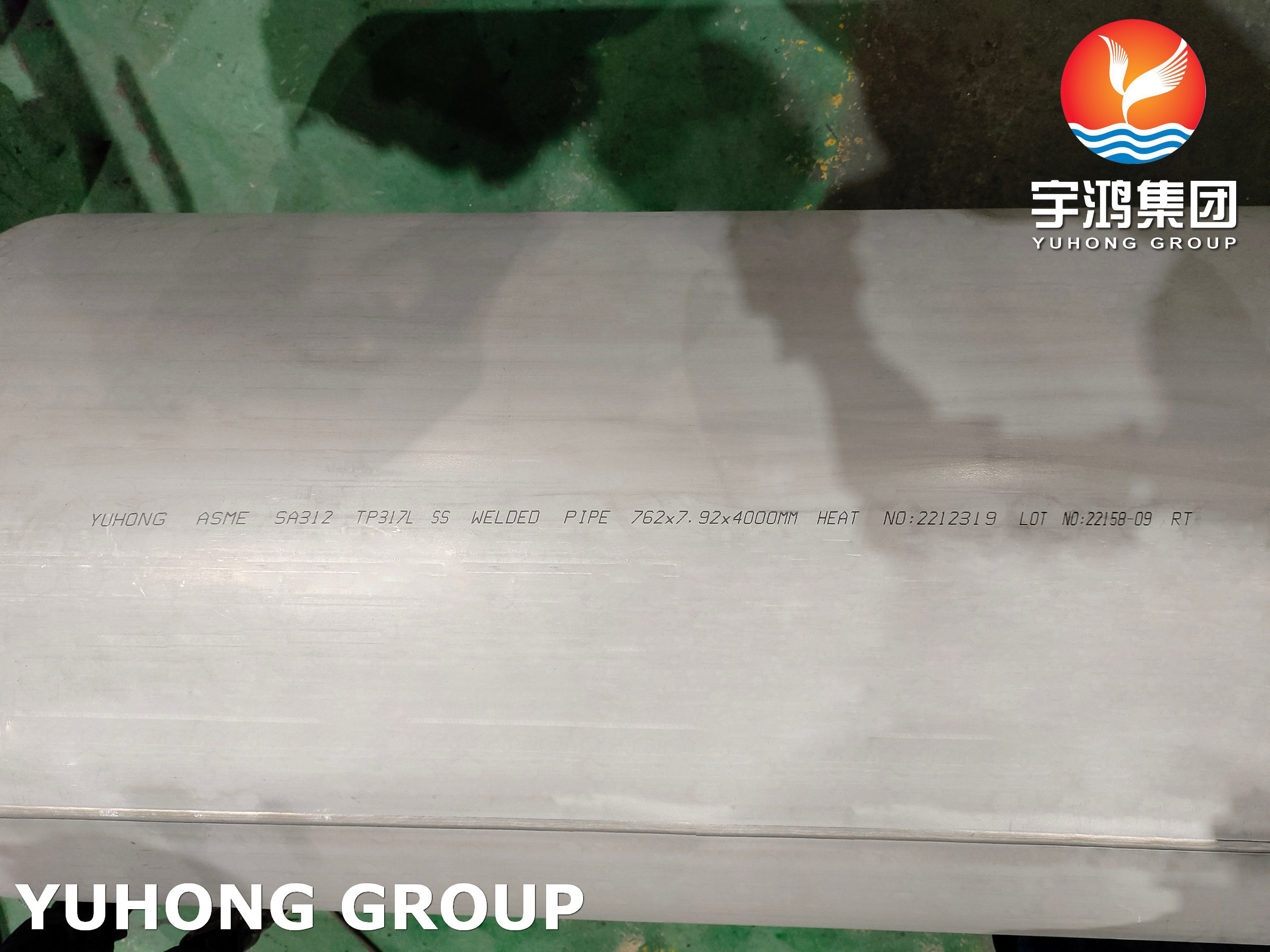

Marking on ASTM A249 TP 317L Stainless Steel Pipe	All 317L Stainless Steel Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Lot No., Heat No. (Or according to the customer’s request.)
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in	Large Diameter 317L Stainless Steel Pipe
Typical Manufacturing Specifications in Stainless Steel	ASME B36.19 AMS 5647 AMS 5566 AMS 5569 AMS 6845 BS 10216 Pt 5 ASTM A213 ASTM A312 ASTM A269 ASTM A632 BS 3605 Pt 1 NFA 49-117 NFA 49-217 Mil-T 8504 Mil-T 8606 or as per customer specifications.
317L Stainless Steel Pipe Test Certificate	Manufacturer Test Certificate Laboratory Test Certificate as approved Under Third Party Inspection
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Report, Raw Materials Certificate, Third Party Inspection Report ...

Applications

The A312 TP317L welded pipe is typically used in applications where corrosion resistance is a key requirement. It is commonly used in industries such as chemical processing, petrochemical, oil and gas, food processing, and pharmaceuticals, where the pipe is exposed to corrosive environments. The TP317L grade is known for its high corrosion resistance, especially in acidic and chloride-rich environments.
