Copper Alloy Steel C12200 C70600 For Heat Exchanger Bundle With Tubesheet

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	C12200 , C44300, C68700, C70600
Certification :	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Payment Terms :	L/C, T/T
Delivery Time :	7DAYS

Add to Cart

Product Details
Company Profile

Copper Alloy Steel C12200 C70600 For Heat Exchanger Bundle With Tubesheet

Copper Alloy Steel C12200 C70600 For Heat Exchanger Bundle With Tubesheet

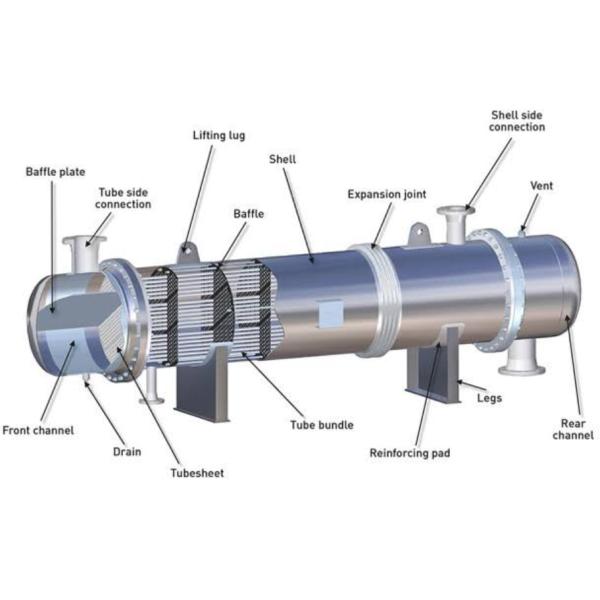

Tube Bundle: The collection of tubes, tube sheets, and baffles is often referred to as the tube bundle. It is the core heat transfer section of the heat exchanger, and it can be removed for maintenance and cleaning purposes.:

Standards
Cupro Nickel Tube90/ 10	Standard	BS2871part3	ASTM B-111	IS 1545	JIS H 3300	NFA 51 102
Cupro Nickel Tube90/ 10	Symbol	CN 102	C 70600	CuNi10Fe1	C7060	CuNi10Fe1Mn
Cupro Nickel Tubes 70/30	Standard	BS2871part3	ASTM B-111	IS 1545	JIS H 3300	NFA 51 102
Cupro Nickel Tubes 70/30	NFA 51 102	CN 107	C 71500	CuNi30Mn1Fe	C 7150	CuNi30Mn1Fe

Tube Sizes for Heat Exchangers & Condensers & Boiler

Outside Diameter			BWG
		25	22	20	18	16	14	12	10
			Wall Thickness mm
		0.508	0.71	0.89	1.24	1.65	2.11	2.77	3.40
mm	inch		Weight kg/m
6.35	1/4	0.081	0.109	0.133	0.174	0.212
9.53	3/8	0.126	0.157	0.193	0.257	0.356	0.429
12.7	1/2		0.214	0.263	0.356	0.457	0.612	0.754
15.88	5/8		0.271	0.334	0.455	0.588	0.796	0.995
19.05	3/4		0.327	0.405	0.553	0.729	0.895	1.236
25.4	1		0.44	0.546	0.75	0.981	1.234	1.574	2.05
31.75	1 1/4		0.554	0.688	0.947	1.244	1.574	2.014	2.641
38.1	1 1/2		0.667	0.832	1.144	1.514	1.904	2.454	3.233
44.5	1 3/4				1.342	1.774	2.244	2.894	3.5
50.8	2				1.549	2.034	2.574	3.334	4.03
63.5	2 1/2				1.949	2.554	3.244	4.214	5.13
76.2	3				2.345	3.084	3.914	5.094	6.19
88.9	3 1/2				2.729	3.609	4.584	5.974	7.27
101.6	4					4.134	5.254	6.854	8.35
114.3	4 1/2					4.654	5.924	7.734	9.43

Copper Nickel Tubes 90/10 for Heat Exchangers & Condensers
These Copper Nickel tubes & pipes for Heat Exchangers & Condensers are very important for all Industrial fields. The company has experience in these areas and is able to supply these tubes in accordance with most international standards and special customer requirements.

Size Range:

Production	Outside Diameter	Wall Thickness
Heat Exchanger Tube	6.00mm to 101.6mm	0.5mm to 8mm

Final Finishing

Solution Annealed & Pickled/Bright Annealed.

Type of Tubes:

U-bend & Straight.

Some of the quality tests carried out by us includes:

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

Eddy Current Testing
O.P Testing
Radiography Testing

Corrosion Testing
Micro Testing
Macro Testing

IGC Testing
Ultrasonic testing
Liquid Penetrate testing

Copper Alloy Steel C12200 C70600 For Heat Exchanger Bundle With Tubesheet
