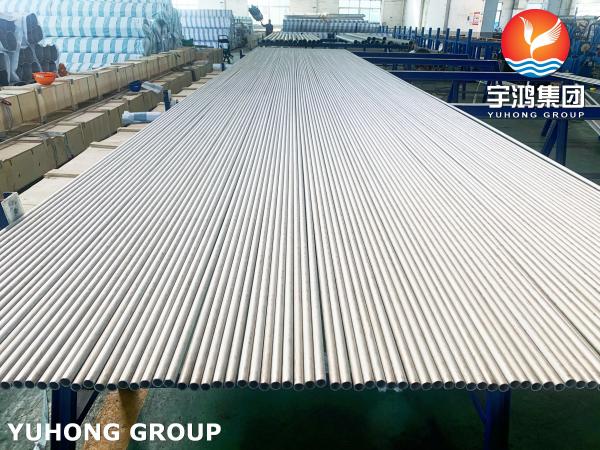

ASTM A213/ASME SA213 TP304L Stainless Steel Seamless Round Tube For Heat Exchanger

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	ASTM A213 TP304L
Certification :	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	1000tons/month
Delivery Time :	15-35 DAYS

Add to Cart

Product Details
Company Profile

ASTM A213/ASME SA213 TP304L Stainless Steel Seamless Round Tube For Heat Exchanger

Product Name:	Heat Exchanger Tube	Standard:	ASTM A213 / ASME SA213
Material:	Stainless Steel	Length:	Single Random, Double Random & Cut Length.
Form:	Straight &U Bend	Surface:	Oil-dip, Varnish, Passivation, Phosphating
End:	Plain Ends / Beveled Ends	Type:	Seamless
Packing:	Plywood Case,Bundle
High Light:	ASME SA213 Stainless Steel Tube,Stainless Steel Seamless Tube, Heat Exchanger Tube,Boiler Tube

ASTM A213 / ASME SA213 TP304L Stainless Steel Seamless Tube

Overview

ASTM A213 TP304L is a specification for austenitic stainless steel seamless tubing. Specifically, TP304L is a low carbon content stainless steel material whose chemical composition consists primarily of chromium (Cr) and nickel (Ni), with small amounts of carbon (C) and other alloying elements.

ASTM A213 is a standard specification for seamless alloy steel and stainless steel pipe developed by the American Society for Testing and Materials (ASTM). The specification specifies the chemical composition, mechanical properties, heat treatment requirements, dimensions, and other requirements for piping materials.
Therefore, ASTM A213 TP304L specification is applicable to industries related to the production and use of low carbon content austenitic stainless steel TP304L pipe, such as chemical, oil and gas, food processing and other fields. It has good corrosion resistance and weldability and performs well in high temperature and corrosive environments.

Chemical Composition of ASTM A213 TP304L

Grade		C	Mn	Si	P	S	Ni	Cr
TP304	Min						8.0	18.0
TP304	Max	0.08	2.0	1.0	0.045	0.03	11.0	20.0

Mechanical Properies of ASME SA213 TP304L

Grade	Tensile Str Ksi(Mpa)	Yield Str Ksi(Mpa)	Elongation(%)	Hardness
				Rockwell (HRB)	Brinell(HBW)
TP304L	≥75(515)	≥30(205)	≥35	≤90	≤200

Wall Thickness Tolerance of ASME SA213

Welded, Hot-Finished Tubes	Type	Wall Thickness Tolerance
OD Range	Type	Average(-)
6~65mm(Incl.)	SMLS&WLD	(-12.5%,+20%)
>65mm	SMLS&WLD t/D≤5%	(-12.5%,+22.5%)
>65mm	SMLS&WLD t/D>5%	(-12.5%,+15%)

Uses&Application:

Petrochemical
Chemical
Oil and Gas
Pulp & Paper
Power Plant
Food Processing Industry
Energy Industry
