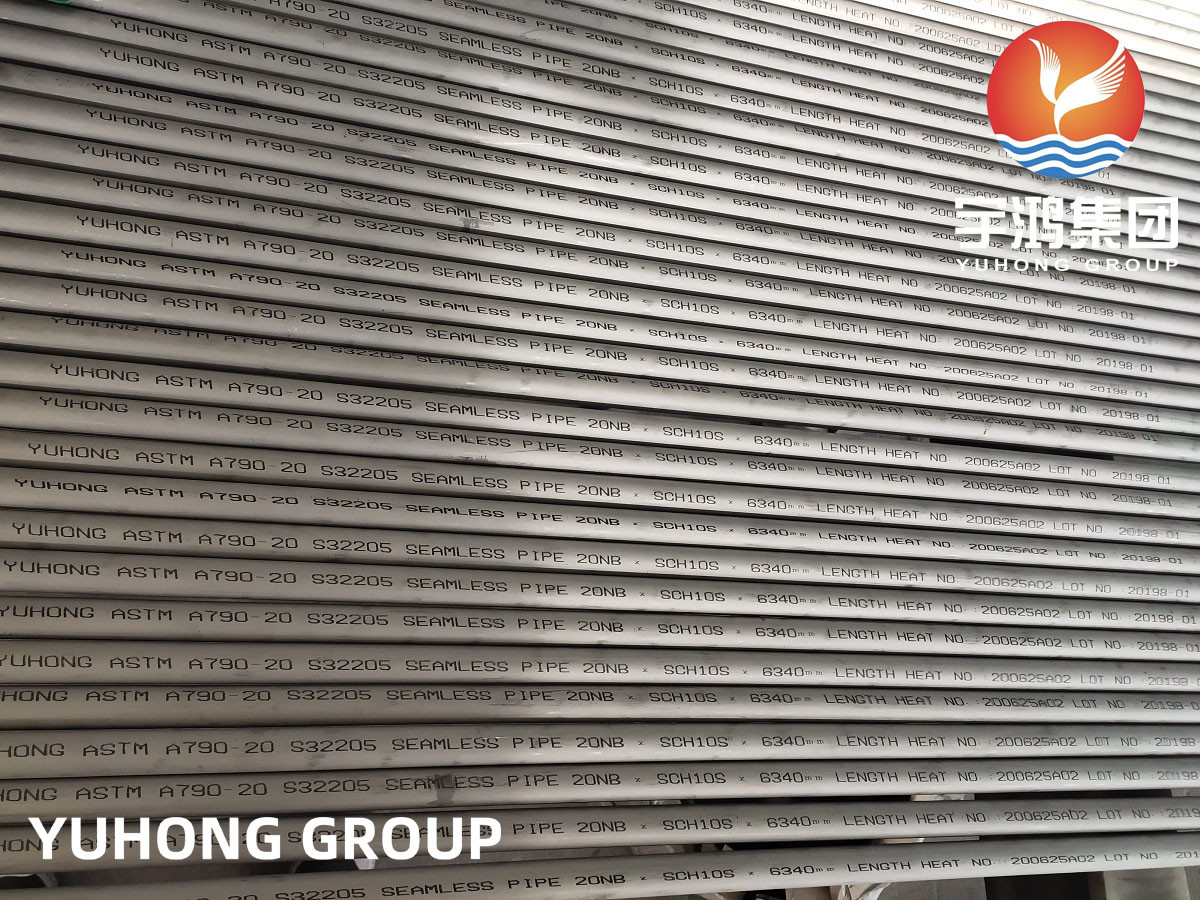

Duplex Stainless Steel Pipe, ASTM A790/789 S31803 (2205 / 1.4462), S32750 (1.4410)

Duplex Stainless Steel Pipe, ASTM A790/789 S31803 (2205 / 1.4462), S32750 (1.4410)

YUHONG GROUP deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.

Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530

Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),

UNS32760(1.4501)

Chemical Composition

Grade	C max	Si max	Mn max	P max	S max	Cr	Ni	Mo	N
UNS S32750	0.030	0.8	1.2	0.030	0.015	24.0-26.0	6.0-8.0	3.0-5.0	0.24-0.32
UNS S31803	0.030	1.0	2.0	0.020	0.020	21.0-23.0	4.5-6.5	2.5-3.5	0.08-0.20
UNS S31500	0.030	1.0	1.2-2.0	0.030	0.030	18.0-19.0	4.5-5.5	2.5-3.5	0.05-0.10

Physical Properties

Grade	Y.S.MPa min	T.S.Mpa min	Elongation %	Hardness HRC
UNS S32750	550	800	15	20
UNS S31803	450	620	25	20
UNS S31500	440	630	30	20

Duplex Stainless Steel Pipe Application:

Chemical processing, Transport and Storage.

Oil and gas exploration and offshore rigs.

Oil and gas refining.

Marine environments.

Pollution control equipment.

Pulp and paper manufacturing

Chemical process Plant

Some of the quality tests carried out by us includes:

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

Eddy Current Testing
O.P Testing
Radiography Testing

Corrosion Testing
Micro Testing
Macro Testing

IGC Testing
Ultrasonic testing
Liquid Penetrate testing
